Complete set for an 80cc motorcycle engine
Frequent doubts:
The high-performance engine "BOLINHAS NO CILINDRO".
The engine bolts are a #10 Allen wrench.
We have silver and black engines
unified head

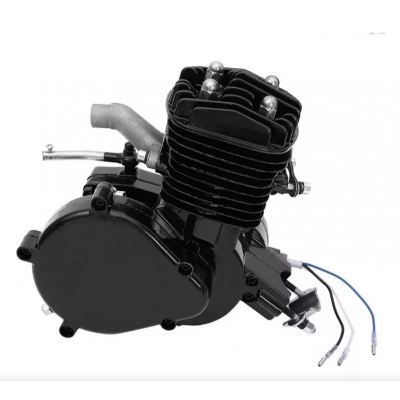

Motorcycle engine kit for quick assembly and launch. 80cc engine, capable of climbing hills and reaching speeds of up to 60 km/h.
The user is advised to use safety equipment to ensure their safety in case of accidents.
- Specialized technical assistance.
# Take care of your car's engine:
• This is a two-stroke engine, and it requires a mixture of gasoline and oil.
• Initial engine mixture: 60 ml of two-stroke engine oil per liter of gasoline (new engine) and 35 ml of two-stroke engine oil per liter of gasoline (after 500 km).
• Engine break-in period: 500 km.
• The engine assembly is easy to install for those with knowledge of mechanics.
• The maximum speed recorded was approximately 50 km/h.
• The consumption rate ranges between 35 and 50 kilometers per liter.
Technical data sheet for the bicycle engine:
• A crown for 44 teeth.
• 2-liter gasoline tank + stickers inside the tank.
• Black tank
• The motors are available in silver.
• You need to measure the bicycle to see if its minimum dimensions are 27 cm high and 17 cm wide between the frame.
• Maximum weight 120 kg
• Imported industry
• Installation guide included in Portuguese
• Technical assistance

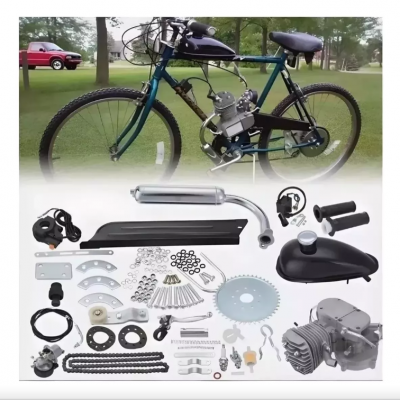

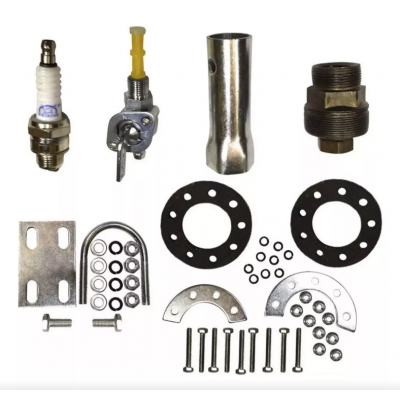

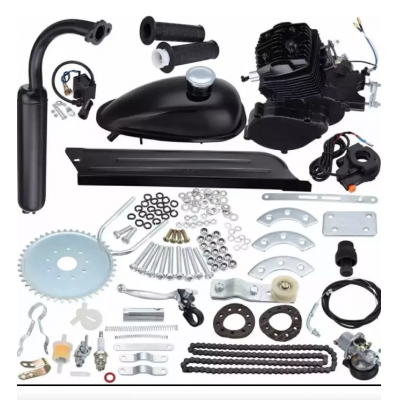

# Package contents:
- Fuel tank with a capacity of 1.8 liters of gasoline;
- Present;
- Motor current protector;
- Current teaching;
- Crown fixation kit;
- Crown with 44 teeth;
- Silver-colored exhaust;
- The key to navigation;
- Lighting candle;
- CDI;
- Gas tap;
- Gasoline hose;
- Fuel filter;
- The carburetor;
- The accelerator pedal;
- Accelerator pedal cable;
- Gripper cable;
- The gripper arm;
- U-shaped adapter for thick-tube tires;
requirements
Arrow: 24 inches or more
Quadro: Formato "V"
Installation dimensions: 27 cm between the candle and the top base
Application for bicycles with disc brakes: Yes
Application for a bicycle equipped with Batim brakes: No
Application of a bicycle with rear suspension: No
Application for bicycles with front suspension: Yes

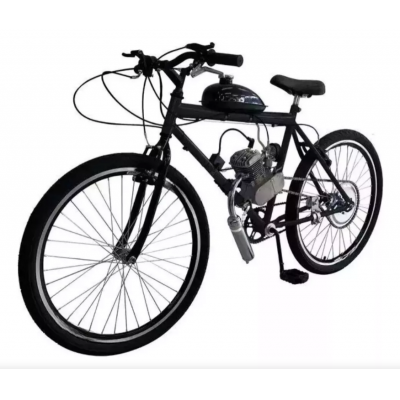

*Illustrative images*
