3CV, 4-pole, single-voltage, dual-voltage electric motor, IP55, LYNUS 100L1

a description

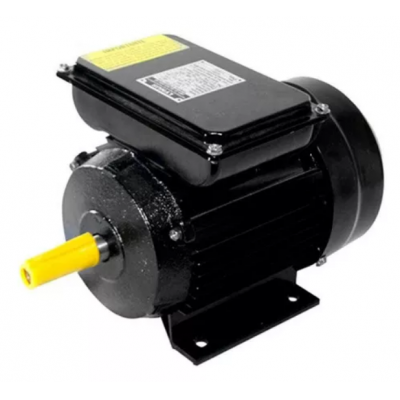

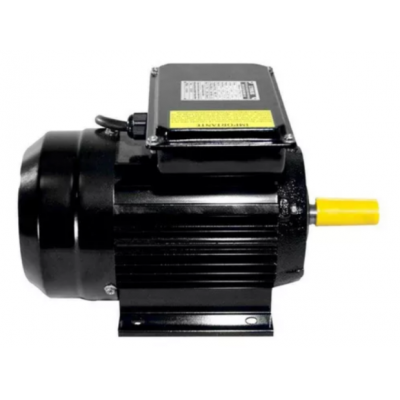

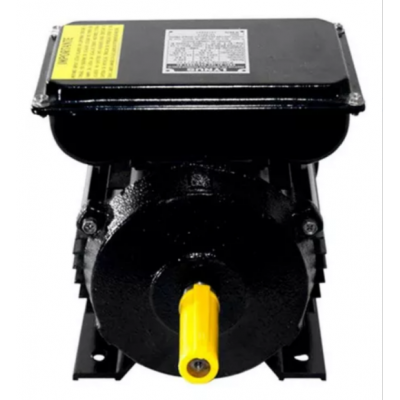

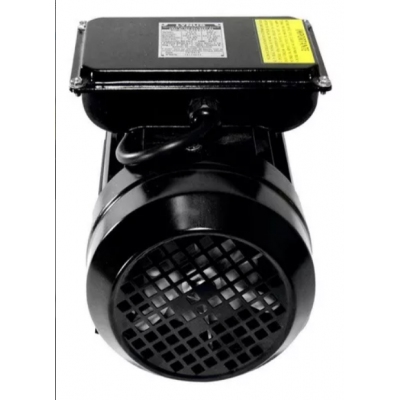

Linus YL100L1-4 3.0 HP four-pole single-phase electric motor, IP44 protection rating

3.0 HP unipolar four-pole electric motor, IP44 protection rating, model YL100L1-4, model number 00011268.1, manufactured by Linus.
Suitable for compressors, metals, fans, feed, wood, concrete, excavators, and more.
Protection rating: IP 44 according to ABNT NBR 60529 standard and IEC 60034-5 standard.
An excellent option for use in the presence of dust and water spray from all directions;
Structural form: B3T according to ABNT/IEC 60034-7 standard. The junction box located at the top facilitates installation;
Insulation: Class B (130°C);
Carcass: According to ABNT NBR 15623-1 standard and IEC 60072-1 standard;

Technical data:
Model: YL100L1-4
Color: Matte black
Code: 00011268.1
Power (kW) (CV): 2.0 | 3.0
Voltage (volts) (non-automatic): 127/220
Structure: 100 liters
The North Poles: 4 Poles
Rotational speed (RPM): 1755
Frequency (Hz): 60
Service Factor (FS): 1.15
Nominal current at 220V: 14.0
Nominal torque (Nm): 11.8
Starting/Nominal Value (nanometers): 2.1
Maximum/Nominal (nanometers): 2.6
Maximum time.

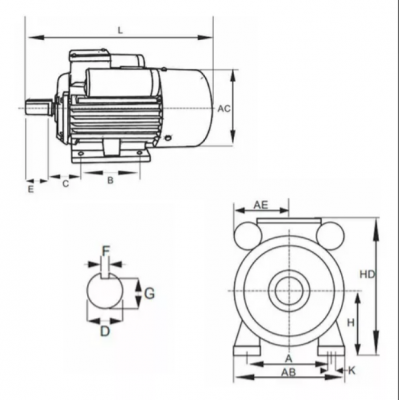

Sizes:
A: 160, B: 140, C: 56, D: 19.05, E: 57.1, F: 4.76, G: 16.3, H: 100, K: 12
AB: 205, AC: 220, AE: 130, HD: 260, L: 432.9
Front bearings: 6206 2rs

Brand: Linus
Reference number: 00011268.1

* Illustrative images only.
