Electrochemical properties of the product

Cooling capacity: 12000 BTU

With Wi-Fi connectivity: Yes

Reflector technology: Yes

Product with a positive impact: Yes
sign | Media |
|---|
line | Their revolution Connect |
|---|
model | 38tvci12s5 |
|---|
color | white |
|---|
Voltage | 220 volts |
|---|
Electrical voltage from the outdoor unit | 220 volts |
|---|
Includes remote control | Yes |
|---|
Indoor unit display | 80.5 cm |
|---|
Depth of the internal unit | 19.4 cm |
|---|
Indoor unit height | 28.5 cm |
|---|
Outdoor unit display | 38.6 cm |
|---|
Depth of the outer unit | 46.1 cm |
|---|
Outdoor unit height | 55.5 cm |
|---|
refrigeration | 12,000 British thermal units |
|---|
Their type of air conditioning | It is divided |
|---|
Climate type | cold |
|---|
Employment opportunities | wall |
|---|
Soda gas type | R-32 |
|---|
Types of control panels | electronic |
|---|
Wifi | Yes |
|---|
temporary | Yes |
|---|
Thanks to the conversion technology | Yes |
|---|
sleeping | Yes |
|---|
Equipped with a ventilation function | Yes |
|---|
With a positive effect | Yes |
|---|
Energy efficiency in Brazil | the |
|---|
It is compatible with the Wi-Fi module. | Yes |
|---|
a description

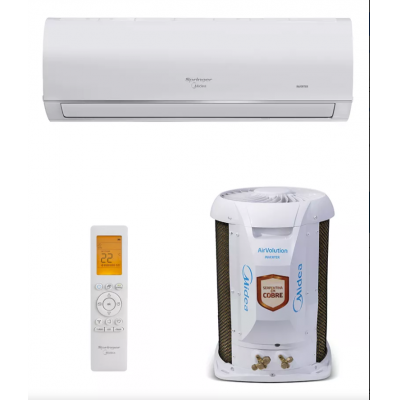

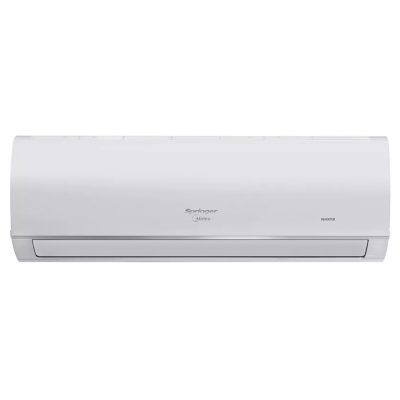

Springer Media The Revolution Connect high wall inverter split air conditioner, 12,000 BTU cooling capacity, 220V, R-32 refrigerant gas.
Energy economics
Energy efficiency was tested through the INMETRO¹ rating, in addition to utilizing inverter technology and R32 fluids, combining economy and sustainability.
Durability

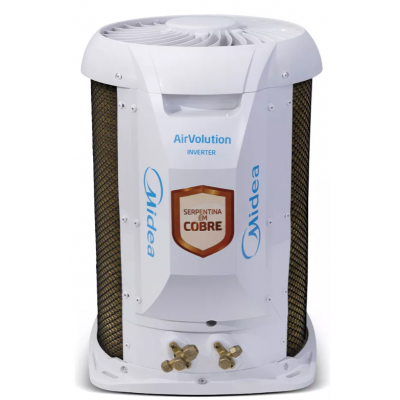

Thelem is made of copper snake, a highly resistant and thermally conductive material, and an outdoor unit equipped with GOLD FIN®, additional protection against corrosion.
CONECTIVIDTHEDE²: FTHECILIDTHEDE THE SEU DISPOR
Using the smart home app, in addition to voice control³ of the device from anywhere, you can adjust the sleep curve and configure the equipment to operate according to your phone’s geographic location.
The THEr-Condicionado Springer Midea THEirVolution Inverter is a robust solution for protecting Gold Fin® against corrosion and providing energy savings with an INMETRO¹ certified inverter and R32 refrigerant, combining economy and environmental responsibility.
Thelem is made of copper snake, a highly resistant and thermally conductive material, and features an outdoor unit with GOLD FIN®, providing additional protection against corrosion.
In addition to its power, the device offers convenient connectivity and easy operation via the SmartHome app. You can control the device by voice using Alexa or Google Assistant, adjust the voice curvature for a quiet scan, and configure the device for pairing/connection using GPS geolocation on your smartphone.
It features a TECNOLOGITHE inverter that reduces energy consumption by 70% using ECONOITE4 technology, and a filter with Prata ions for antibacterial properties that effectively combat various types of bacteria. The Turbo mode ensures faster temperature adjustment. Powerful, quiet, comfortable, and reliable.
• Wi-Fi Connectivity²: You have complete control over your air conditioner through the SmartHome app, which allows you to adjust the temperature curve to your preferences for maximum comfort and energy efficiency, as well as configure your connection/download device to geolocate your cellular network. With Google Assistant or Alexa, you can control your air conditioner with simple and intuitive voice commands to connect or remotely operate it, as well as change the temperature or adjust settings.
• Inverter technology: Saves up to 70% on energy without an economy mode
Compare the consumption of the Springer Midea THEirVolution Inverter (under factory test conditions with EcoNoite mode) with conventional splitters without Inverter technology.
• Increased energy consumption: Economy classification across all capacities.
• Gold fins in the condenser: Additional protection ensures greater resistance to oxidation and corrosion, enhancing durability and increasing service life.
• Reflector board: The acrylic coating on the printed circuit board provides greater material thickness, ensuring optimal protection against harsh conditions, chemicals, and high temperatures. Ideal for use in coastal areas requiring high durability.
• Turbo function: This function operates the air conditioner at its maximum power, ensuring that the desired temperature is reached much faster.
• Environmentally friendly refrigerant R32: Higher performance and lower environmental impact. A single solution combining economy, efficiency, and environmental responsibility.
• Silver ion filter: Features a highly effective antibacterial function against various types of bacteria.
• Dormir function: The set temperature will be controlled for greater comfort and economy. In cooling mode, the set temperature is increased by 1°C per hour for the first two hours, and the function or cooling is maintained if desired. In THEQUECIMENTO mode (sometimes for a quick/cool release), the set temperature is decreased by 1°C per hour for the first two hours, while the function or cooling is maintained in the operating mode.
• Power function: Allows limiting the power of the outdoor unit compressor to 75% or 50%, thus saving more power.
• “Follow Me” function: The indoor unit will follow the ambient temperature where the remote control is located, allowing the air conditioner to optimize its ambient temperature and ensure maximum comfort.
• Timer function: Schedule the air conditioner to turn on and off at the required time, through a simple and quick schedule.
• Cleaning function: Removes dust, mold, and grease that can cause unpleasant odors when they stick to the indoor unit's evaporator, and also prevents the unit from freezing.
• THEviso Limpar and filter replacement: 240 hours of use, and an internal unit indicates that it is necessary to clean the filter, and after 2880 hours of use, an internal unit indicates that the filter must be replaced.
• LED function: Disables alarm sounds and illuminates the indoor unit's screen, providing a comfortable and quiet environment.

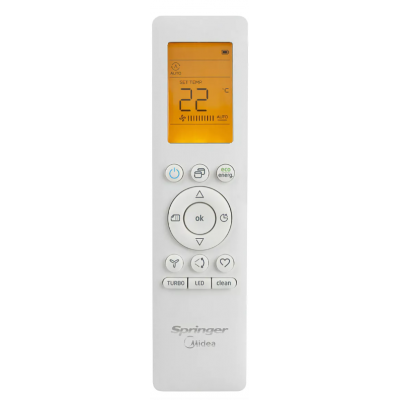

• Backlit remote control: which makes it easier to operate the device in dark environments and also indicates a low battery charge.
• Remote control key lock: Press and hold the TURBO and CLETHEN keys simultaneously for approximately 5 seconds until all keys are locked.
• Oscillation function: It activates the automatic movement of the horizontal fins and the steering function, which changes the angle of the fins. This allows for better air direction in the environment.
• 5 operating modes: Cooling, Cooling*, Automatic, Ventilation, Dehumidification (*some 5/Frio models) and 4 ventilation speeds: Pixa, Media, Thelta, and Automatica.
